Bluetooth-Controlled RGB Light

Bluetooth-Controlled RGB Light

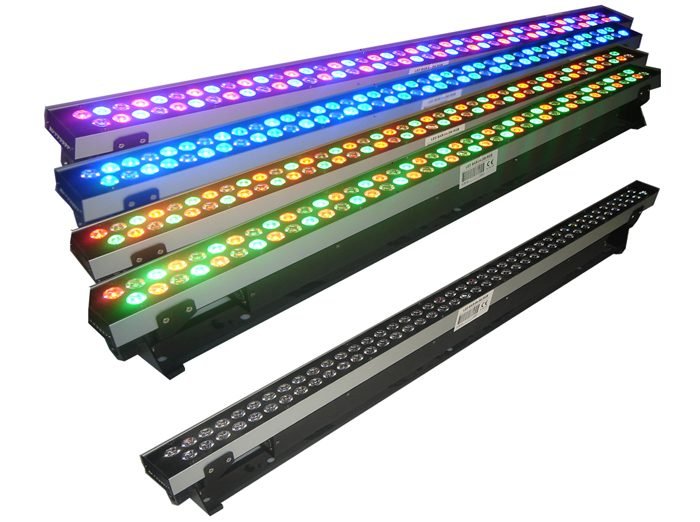

Image: RGB 84watt LED wall wash 1.jpg by Graceluk via Wikimedia Commons, Public domain

How It Works

• A smartphone app sends color values (red, green, blue intensities, 0-255 each) over Bluetooth as the user picks a color on a color wheel or slider.
• The Arduino receives these values through the HC-05 module over serial.
• PWM output on three pins drives the RGB LED strip's red, green, and blue channels at intensities matching the received values, blending to produce the selected color.
• Brightness is controlled by scaling all three channel values proportionally before writing them out.

Components

Arduino Uno/Nano
Bluetooth module (HC-05)
RGB LED strip (common-cathode or addressable WS2812B)
MOSFET drivers (for a non-addressable strip needing more current than Arduino pins supply)
Smartphone app (custom or generic Bluetooth RGB controller app)

Applications

• Decorative room and accent lighting
• Mood lighting for events or home theaters
• Teaching PWM-based color mixing

Advantages

• Full custom color range instead of a handful of remote presets
• Simple, low-cost Bluetooth control without needing Wi-Fi/cloud setup
• PWM color mixing is a directly transferable embedded systems skill

Sample Code — Bluetooth RGB Color Control

// Simplified Bluetooth RGB control - Arduino
int redPin = 9, greenPin = 10, bluePin = 11;

void setup() {
  Serial.begin(9600); // HC-05 on Serial
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}

void loop() {
  if (Serial.available() >= 3) {
    int r = Serial.read();
    int g = Serial.read();
    int b = Serial.read();
    analogWrite(redPin, r);
    analogWrite(greenPin, g);
    analogWrite(bluePin, b);
  }
}
